Ashpan

Start with the ashpan

The instructions start with building the ashpan. This is a good little introduction to the tab and slot construction method used in the kit.

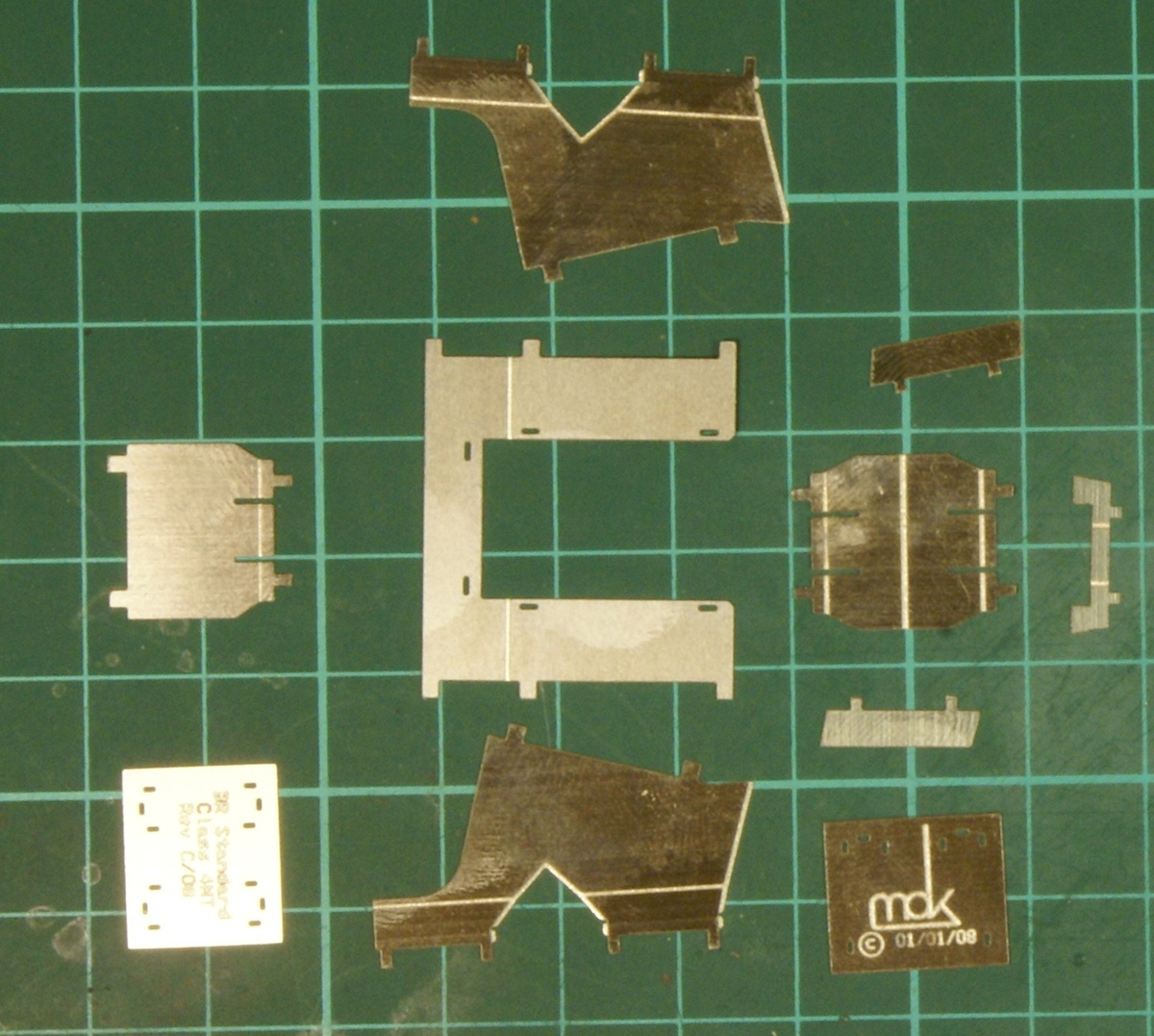

So these are the 10 etchings required for the ashpan, which are fairly easy to assemble. The side pieces have a reverse fold to make and the centre piece has a v-fold to match the cutout in the side pieces.

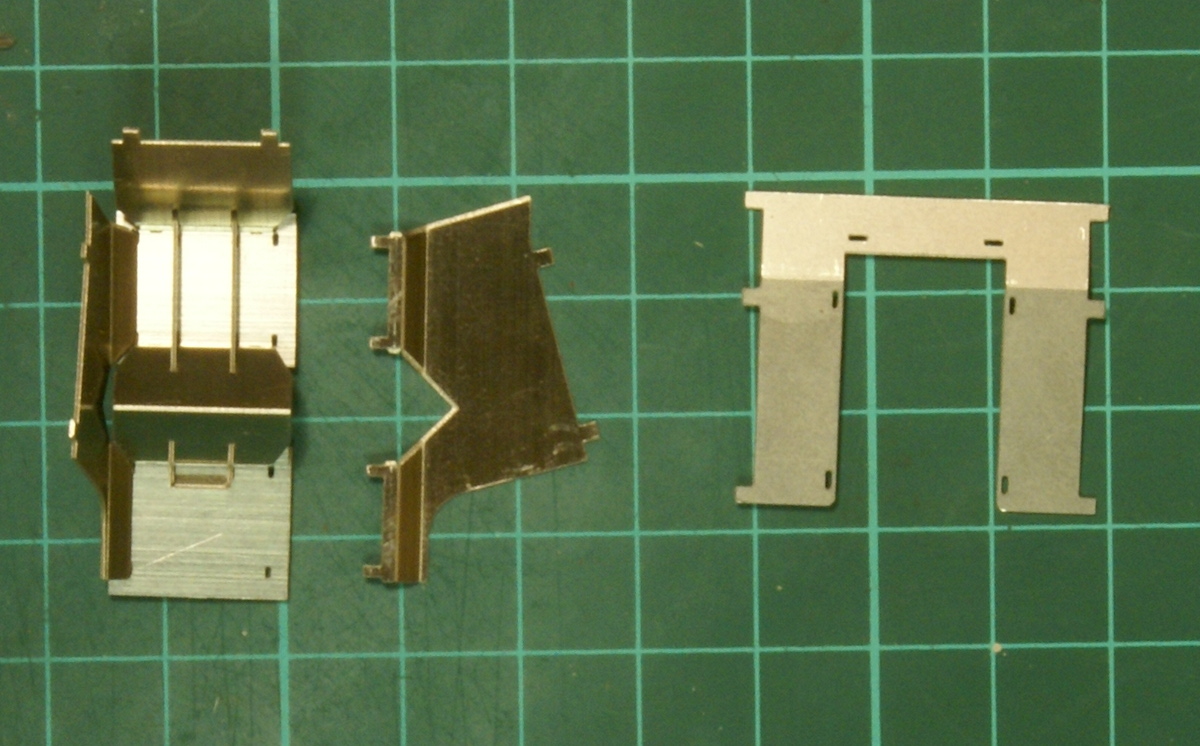

Once folded up the pieces virtually interlock together. Start with one side and the base plates, then attach the other side piece and finish off by putting on the top plate.







That completes the first item, it can then be put to one side whilst we start the next stage.

Published on Saturday 23 July, 2011
